Description

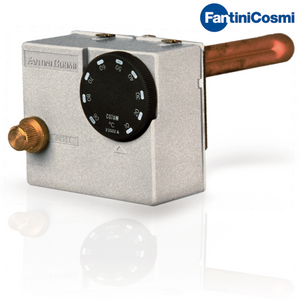

DOUBLE THERMOSTAT FOR REGULATION AND LIMITING

FOR BOILERS AND HEATING SYSTEMS

Description:

Positive safety regulation and double limiting thermostat for boilers and heating systems.

General characteristics:

  • The double thermostat consists of a C03A2 and a C06A2M in a single cover and a single sheath.
  • Stainless steel membrane sensing element.
  • Copper sheath with Gc 1/2 PN10 connection.
  • Base, cover, and knob made of V0 shockproof and self-extinguishing thermoplastic material.
  • Electrical connections outlet with PVC cable gland.
  • Maximum bulb temperature 130°C.
  • Storage and transport temperature -35 to 120°C.
  • Permissible body temperature -35 to 120°C.
  • Unit weight 0.37 Kg.

Electrical characteristics:

  • Microswitch in switching and microswitch with manual reset.
  • Quick release, gold-plated AgCdO contacts.
  • Rated insulation voltage Ui 380V~
  • Rated continuous operating current Ith 15A
Product code: C07A3M
Datasheet -
Description

DOUBLE THERMOSTAT FOR REGULATION AND LIMITING

FOR BOILERS AND HEATING SYSTEMS

Description:

Positive safety regulation and double limiting thermostat for boilers and heating systems.

General characteristics:

  • The double thermostat consists of a C03A2 and a C06A2M in a single cover and a single sheath.
  • Stainless steel membrane sensing element.
  • Copper sheath with Gc 1/2 PN10 connection.
  • Base, cover, and knob made of V0 shockproof and self-extinguishing thermoplastic material.
  • Electrical connections outlet with PVC cable gland.
  • Maximum bulb temperature 130°C.
  • Storage and transport temperature -35 to 120°C.
  • Permissible body temperature -35 to 120°C.
  • Unit weight 0.37 Kg.

Electrical characteristics:

  • Microswitch in switching and microswitch with manual reset.
  • Quick release, gold-plated AgCdO contacts.
  • Rated insulation voltage Ui 380V~
  • Rated continuous operating current Ith 15A
Product code: C07A3M
Datasheet -
MARQUE by Fantini Cosmi

C07A3M - Positive safety and lockout dual regulating thermostat for boilers and heating systems

C07A3M

66,54 €
66,54 €
Tax included. Shipping calculated at checkout.
Delivery in 2 to 3 days
Fast delivery throughout Belgium. Free on orders over €200.
You have 30 days to return your product.
Free returns for any product not installed in its original packaging.
2-year warranty
Parts and labor covered. 24/7 STS technical support included.
