MONOBLOC UNIT FOR COLD ROOMS R452 LT - HP 2.15 - ZANOTTI DAIKIN UNIT
Description:

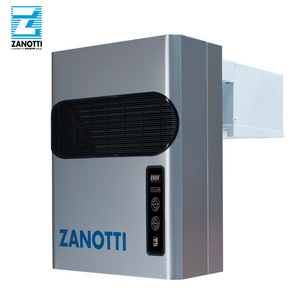

Zanotti Daikin wall-mounted monobloc unit, designed for low-temperature cold rooms. Ready-to-install "all-in-one" system, with hermetic refrigeration circuit, hot gas defrosting and optimised ventilation for uniform cold distribution. Ideal for commercial and industrial applications requiring reliability, compactness and constant performance. Main features: Refrigerant: R452A (GWP 2140). Operating temperature range: -15 °C to -25 °C. Compressor: hermetic, rated power 1.5 kW. kW.
Performance and recommended volumes:
- Tc = -20 °C, Ta = 30 °C: Cooling capacity ≈ 1,688 W; recommended volume V120 = 15 m³, V100 = 13 m³, V80 = 12 m³.
- Tc = -25 °C, Ta = 30 °C: Cooling capacity ≈ 1,361 W; Recommended volume V120 = 11 m³, V100 = 9.8 m³, V80 = 8.6 m³.
Note: performance varies depending on ambient temperature, cell insulation, panel thickness and thermal load; The values above refer to the test conditions indicated by the manufacturer.
Technical specifications (summary table)
- Model: BGM220DB11XA
- Refrigerant / GWP: R452A / 2140
- Temperature range: -15 ÷ -25 °C
- Defrosting: Hot gas
- Weight: 80 kg
Product code: BGM220DB11XA
MONOBLOC UNIT FOR COLD ROOMS R452 LT - HP 2.15 - ZANOTTI DAIKIN UNIT
Description:
Zanotti Daikin wall-mounted monobloc unit, designed for low-temperature cold rooms. Ready-to-install "all-in-one" system, with hermetic refrigeration circuit, hot gas defrosting and optimised ventilation for uniform cold distribution. Ideal for commercial and industrial applications requiring reliability, compactness and constant performance. Main features: Refrigerant: R452A (GWP 2140). Operating temperature range: -15 °C to -25 °C. Compressor: hermetic, rated power 1.5 kW. kW.
Performance and recommended volumes:
- Tc = -20 °C, Ta = 30 °C: Cooling capacity ≈ 1,688 W; recommended volume V120 = 15 m³, V100 = 13 m³, V80 = 12 m³.
- Tc = -25 °C, Ta = 30 °C: Cooling capacity ≈ 1,361 W; Recommended volume V120 = 11 m³, V100 = 9.8 m³, V80 = 8.6 m³.
Note: performance varies depending on ambient temperature, cell insulation, panel thickness and thermal load; The values above refer to the test conditions indicated by the manufacturer.
Technical specifications (summary table)
- Model: BGM220DB11XA
- Refrigerant / GWP: R452A / 2140
- Temperature range: -15 ÷ -25 °C
- Defrosting: Hot gas
- Weight: 80 kg
Product code: BGM220DB11XA
Monoblock unit R452 BT for cold room - 2.15 HP - Zanotti Daikin unit
SKU:BGM220DB11XA
- Regular price
- 3.157,18 €
- Sale price
- 3.157,18 €
