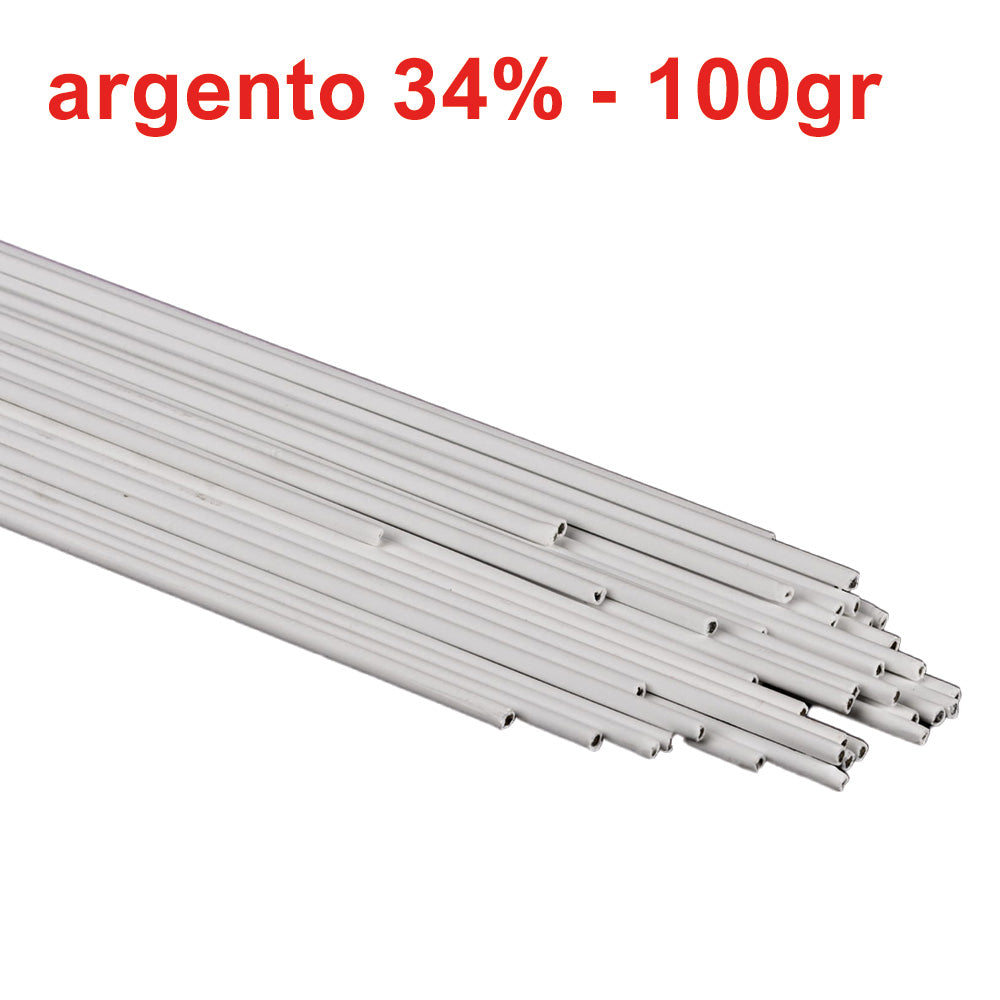

ALLOY RODS for CAPILLARY BRAZING

HIGH SILVER CONTENT 34% - 100 gr

FOR FERROUS and NON-FERROUS PIPES (COPPER-STEEL-BRASS-BRONZE)

FEATURES:

• COATED ROD DIAMETER 2.0 x 500 mm

• COMPOSITION: Ag34Sn

• CADMIUM-FREE ALLOY WITH HIGH SILVER CONTENT (34%)

Corresponding standards:

DIN8513 L-Ag34Sn

EN1044 AG 106

AWS A5.8-04 ---

Nominal composition (wt%):

Ag: 34

Cu: 36

Zn: 27.5

Sn: 2.5

Physical characteristics:

Melting range (Solidus - Liquidus): 630-730°C

Brazing temperature: 740°C

Density: 9 g/cm3

Tensile strength: 48 kg / mm2

Applications:

Brazing alloys for general use and suitable for welding ferrous and non-ferrous base materials (steel, copper, brass, etc.).

Excellent fluidity and capillarity, ensuring joints with excellent mechanical characteristics and pressure resistance.

As they do not contain cadmium, they have no limitations in their uses and comply with RoHS regulations.

Product Code: Ag34Sn
