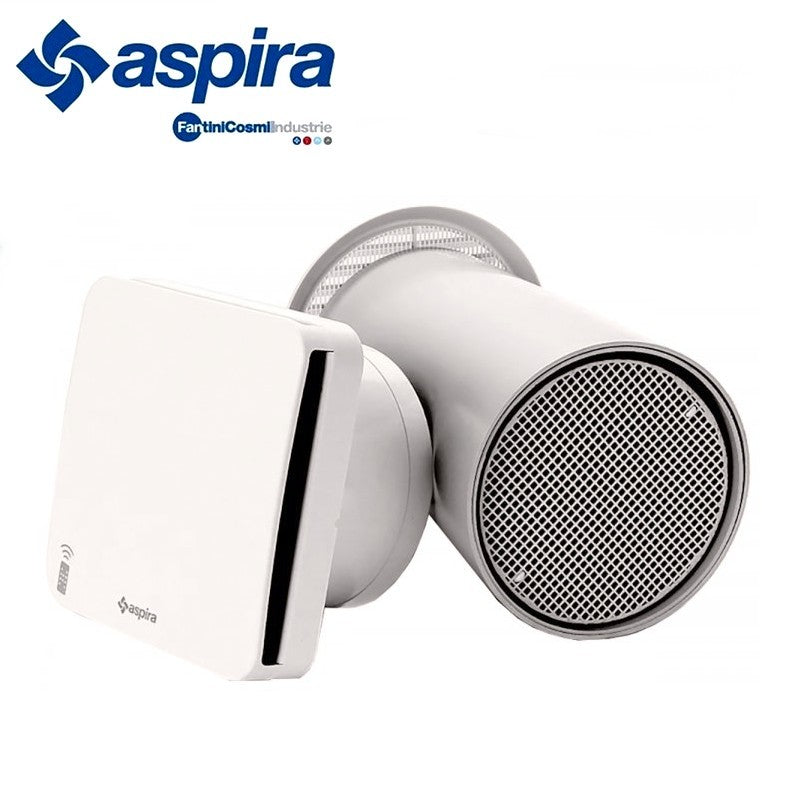

ASPIRVELO AIR RHINOCOMFORT SAT 160 RF - Fantini Cosmi

compact heat recovery unit for a single room

and air purifier

ADDITIONAL MODULE WITHOUT CONTROL

Additional module WITHOUT CONTROL UNIT and WITHOUT TRANSFORMER, this model for correct operation must necessarily be combined with the product AP19990

DESCRIPTION:

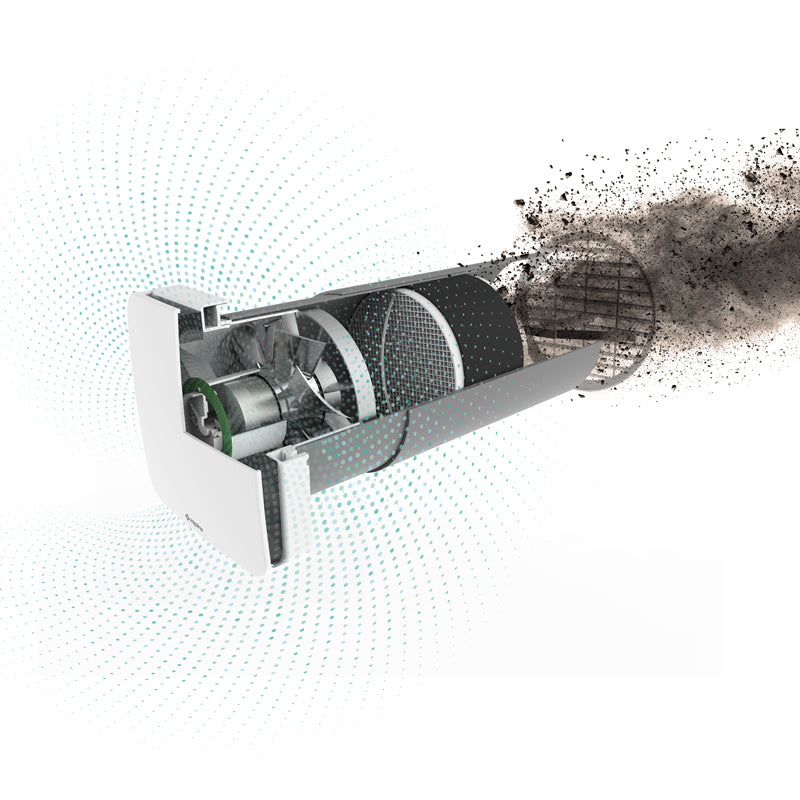

• The RHINOCOMFORT system is composed of one or more decentralized ventilation units with very high-efficiency heat recovery to be installed on perimeter walls, a ceramic heat exchanger placed inside the units; it accumulates the heat released by the air flow extracted from the room and returns it by heating the air during the intake cycle.
• In addition to heat recovery, the system purifies the air coming from the outside thanks to the photocatalysis process. Thanks to the combined action of an LED light that illuminates the duct through which the air passes and the water vapor it contains, RHINOCOMFORT breaks down harmful substances present in the supplied air, transforming them into harmless substances.
• In addition, the air introduced into the environment passes through two G3 filters that retain impurities.
• Each ventilation unit is equipped with a low consumption brushless DC motor controlled by a microprocessor which, by processing information from the sensors present on the unit (temperature, humidity and brightness) and commands given with the radio remote control, adopts the most suitable ventilation modes to ensure the best environmental comfort.
• The minimum installable configuration is the "MASTER" unit and its radio remote control to which several additional units can be added (up to a maximum of 64). The radio remote control, with clear and intuitive graphics, allows the user to set and modify the different control modes, operation and check the current parameters.

FEATURES:

• Can be installed in other rooms or in the case of large environments;

• Up to 63 additional units can be installed, which will be managed with a single remote control via the 'Master' unit.

FAN UNIT

• Suction/propeller fan and brushless DC motor;
• Shockproof PVC telescopic tube;
• Regenerative ceramic exchanger;
• Photocatalytic system;
• Cross-linked polyurethane filters, filtration class G3 according to EN799;
• Flow breaker to ensure higher performance;
• Humidity and brightness sensor;
• Temperature sensor (main unit only);
• Typical RF range: 100 m. outdoors, 30 m. indoors;
• IPX4 protection rating.

ELECTRICAL CHARACTERISTICS OF THE FAN UNIT:

• Power supply 230V~ 50Hz;
• Emission frequency: 868 MHz.

ELECTRICAL CHARACTERISTICS OF THERADIO FREQUENCY REMOTE CONTROL:

• Power supply: 2 button batteries 3V, type CR2032 (supplied);
• Emission frequency: 868 MHz.

 ACCESSORIES AND SPARE PARTS:

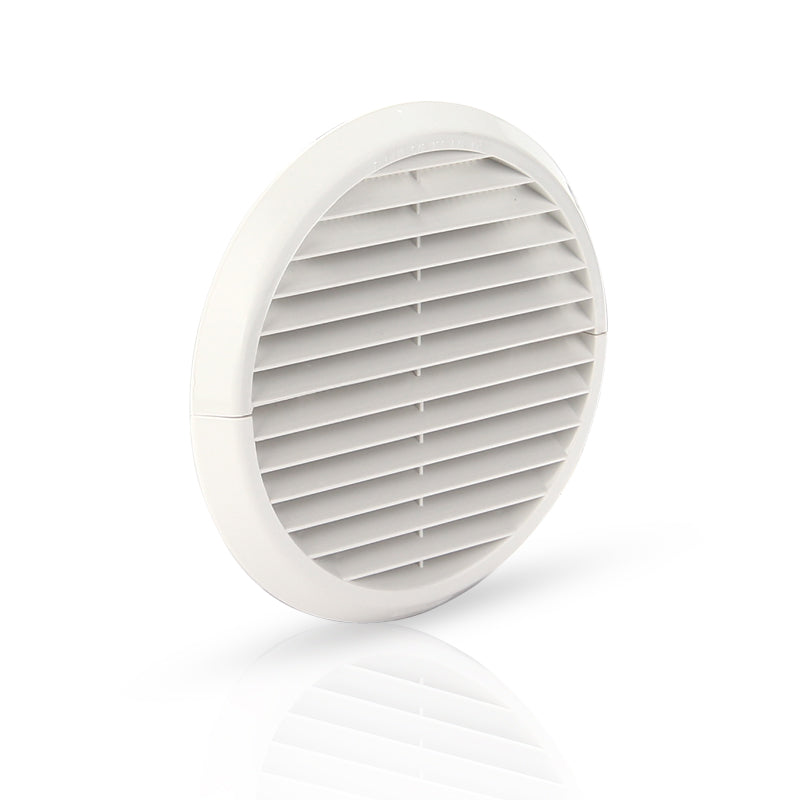

• External air intake/expulsion terminal;
• G3 class filters;

Product code: AP19991
