ASPIRVELO AIR RHINOCOMFORT 160 RF - Fantini Cosmi

compact heat recovery unit for a single room

and air purifier

NEW model complete with remote control

DESCRIPTION:

• The RHINOCOMFORT system is made up of one or more decentralized ventilation units with very high efficiency heat recovery to be installed on perimeter walls, a ceramic heat exchanger placed inside the units; it accumulates the heat released by the air flow extracted from the room and restores it by heating the air during the intake cycle.
• In; In addition to heat recovery, the system purifies the air coming from outside thanks to the photocatalysis process. Thanks to the combined action of an LED light that illuminates the duct through which the air passes and the water vapor it contains, RHINOCOMFORT breaks down harmful substances present in the supplied air, transforming them into harmless substances /span. >
• Furthermore, the air introduced into the environment passes through two G3 filters which retain impurities.
• Each unit ventilation is equipped with a low-consumption brushless DC motor controlled by a microprocessor which, by processing information from the sensors present on the unit, (temperature, humidity and brightness) and the commands given with the remote control, adopts the most suitable ventilation modes to ensure the best environmental comfort.
• The minimum installable configuration is the "MASTER" unit and its remote control to which several additional units can be added (up to a maximum of 64). The remote control, with clear and intuitive graphics, allows the user to set and modify the different control modes. operation and check the current parameters.

FEATURES:

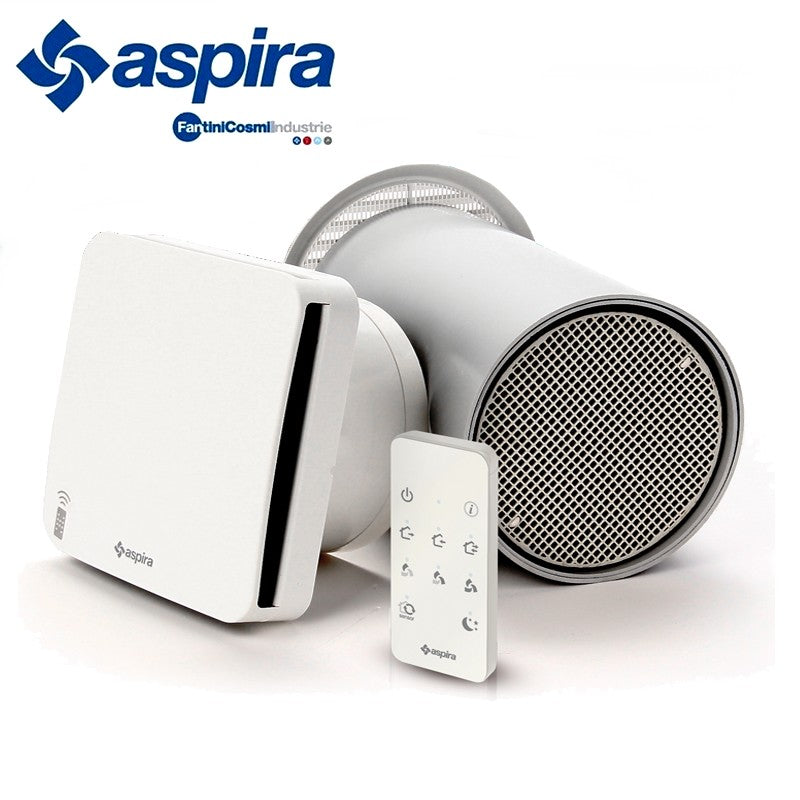

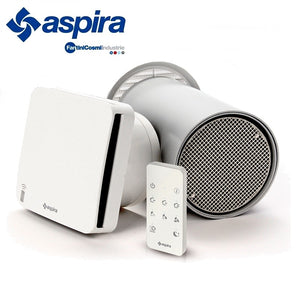

• RHINOCOMFORT cod. AP19990 includes: 'MASTER' fan unit, heat recuperator, photocatalytic system, external grille and radio control.
• The minimum installable configuration is the "MASTER" unit and its remote control to which several units can be added. additional code AP19991 (up to a maximum of 64).

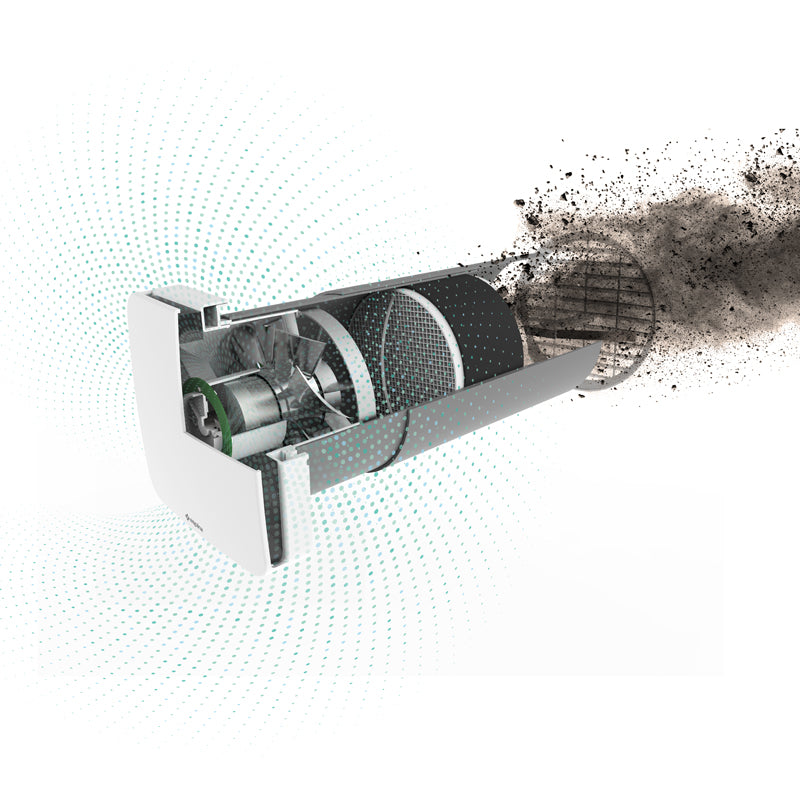

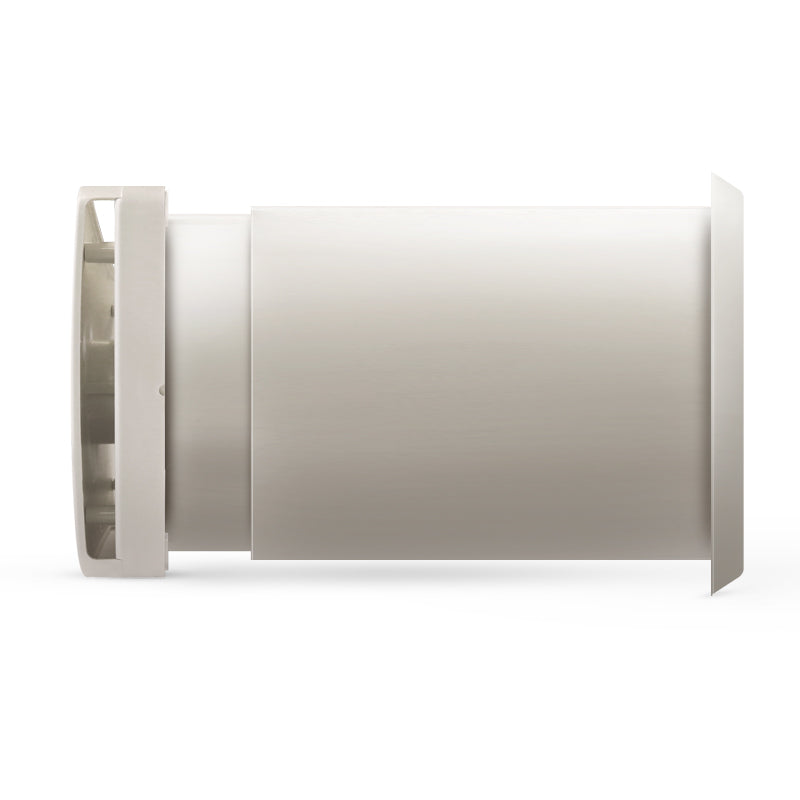

FAN UNIT

• Suction/propeller fan and brushless DC motor;
< li>Telescopic tube in anti-shock PVC;
• Regenerative ceramic exchanger;< /span>
• Photocatalytic system;
• Cross-linked polyurethane filters, filtration class G3 according to EN799;
• Breaking the flow to guarantee superior performance high;
• Humidity and brightness sensor;
• Temperature sensor (main unit only);
• Typical RF range: 100 m. outdoors, 30 m. indoors;
• Protection rating IPX4.

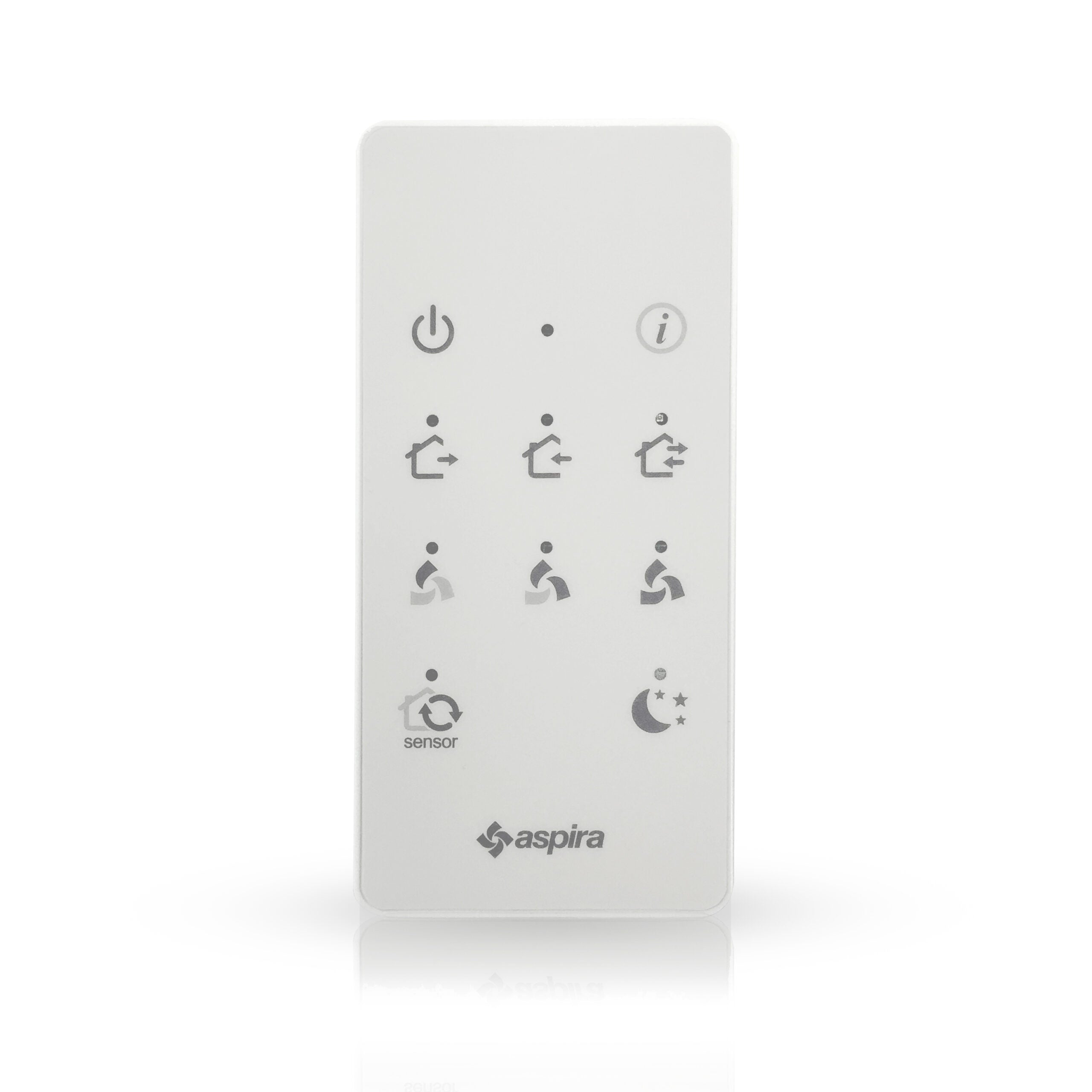

RADIO FREQUENCY REMOTE CONTROL

• "touch" composed of 10 keys;
• Functional feedback via 9 blue LEDs;
• Typical RF range: 100 m. outdoors, 30 m. indoors;
• Protection rating: IP40;
• Battery life: approx. 18 months (2 x CR2032 included).

< /span>

ELECTRICAL CHARACTERISTICS OF THE FAN UNIT:

• Power supply 230V~ 50Hz;
• < span style='font-size: 10pt;'>Emission frequency: 868 MHz.

ELECTRICAL CHARACTERISTICS OF THERADIO FREQUENCY REMOTE CONTROL:

• Power supply: 2 x 3V button cells, type CR2032 (supplied);
• Emission frequency: 868 MHz.
< / ul>

THE PACKAGE INCLUDES:

• 'MASTER' ventilation system unit with heat recuperator, photocatalytic system and external grille;
• Radio frequency remote control


ACCESSORIES AND SPARE PARTS:

• Additional ventilation unit with heat recuperator, photocatalytic system and external grille;

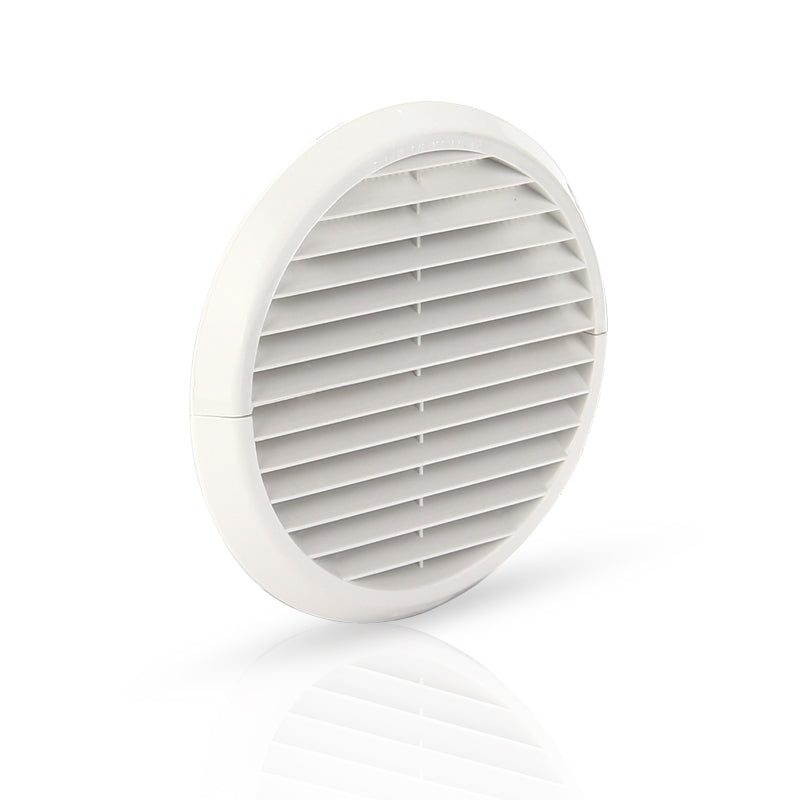

• External air intake/expulsion terminal;
• G3 class filters;

Product code: AP19990 < /span>
