ASPIRVELO AIR ECOCOMFORT - Fantini Cosmi

compact heat recovery unit for a single room

with ceramic heat exchanger

complete with control units

Decentralized ventilation and extraction unit with very high efficiency heat recovery.

THE AP19980 ASPIRVELO AIR ECOCOMFORT KIT INCLUDES:

- Fan unit with recuperator and grille;
- Control unit;
- 12 Vdc power supply for up to 4 units;

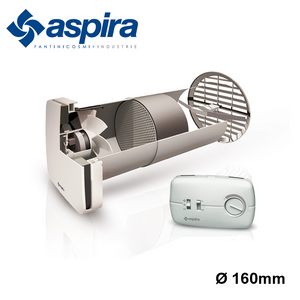

The unit operates on the principle of regenerative heat recovery, thanks to a ceramic heat exchanger placed inside the device that accumulates heat released by the air flow entering or leaving the room and returns it when the flow reverses direction.
Fan unit controlled by a brushless DC motor with reverse cycle operation that allows continuous air exchange between inside and outside.

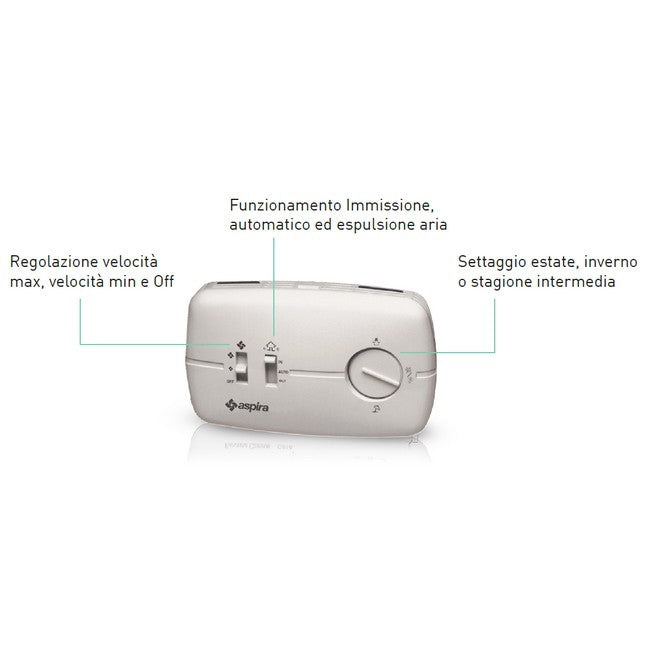

The air is constantly filtered through a G3 filter installed on the front of the device and easily removable for cleaning. The unit is managed by a wall-mounted control electronics that offers three operating modes: automatic, intake and air extraction. In addition, the control electronics allows to adjust the operation according to the difference between the internal and external temperature.
The control unit can manage up to 4 fan units in combined mode and adjust the extraction or introduction air speed.

Product code: AP19980
