ASPIRVELO AIR ECOCOMFORT 100 - Fantini Cosmi
compact heat recovery unit for a single room
with ceramic heat exchanger
complete with control units
Decentralized ventilation and extraction unit with very high efficiency heat recovery.

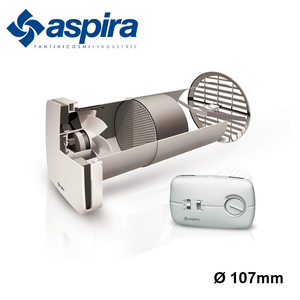

THE AP19984 ASPIRVELO AIR ECOCONFORT KIT INCLUDES:
- Fan unit with recuperator and grille;
- Control unit;
- 12 Vdc power supply for up to 4 units;
The unit operates on the principle of regenerative heat recovery, thanks to a ceramic heat exchanger placed inside the appliance that accumulates the heat released by the air flow entering or leaving the room and returns it when the flow reverses direction.
Fan unit controlled by a brushless DC motor with inverted cycle operation that allows continuous air exchange between inside and outside.

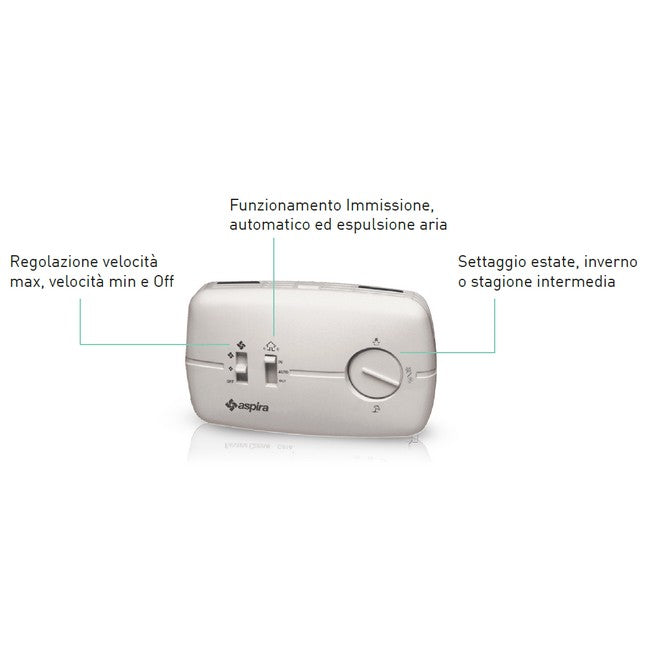

The air is constantly filtered through a G3 filter installed on the front of the appliance and easily removable to allow cleaning. The unit is managed by a wall-mounted control electronics which offers three operating modes: automatic, intake, and air extraction. In addition, the control electronics allows adjusting the operation based on the difference between internal and external temperature.
The control unit can manage up to 4 fan units in combined mode and adjust the air extraction or introduction speed.
Product code: AP19984
