ASPIRVELO AIR ECOCOMFORT SAT 160 RF - Fantini Cosmi

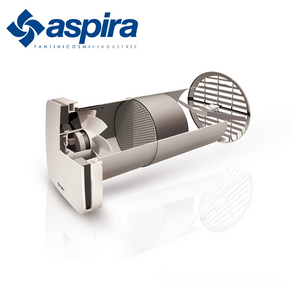

Compact heat recovery unit for a single room with ceramic heat exchanger

ADDITIONAL MODULE WITHOUT CONTROL

Additional module WITHOUT CONTROL UNIT and WITHOUT TRANSFORMER. This model must be combined with the kit for correct operation.AP19981 or AP19987

DESCRIPTION: The "ECOCOMFORT-RF" system consists of one or more decentralized ventilation units with high-performance heat recovery, to be installed on perimeter walls. A ceramic heat exchanger integrated into the unit recovers the heat released by the air extracted from the room and returns it by reheating the air during the blowing cycle. The incoming air passes through a G3 filter that retains impurities. Each unit is equipped with a low-consumption brushless DC motor, controlled by a microprocessor. The latter, by analyzing the information from the integrated sensors (temperature, humidity, and brightness) and the commands from the remote control, selects the most suitable ventilation mode for optimal comfort. The minimum configuration includes the "Master" unit and its remote control, to which up to 64 additional units can be added. The remote control, with clear and intuitive graphics, allows the user to set and modify the different operating modes and check the current parameters. FEATURES: Anti-UV and antistatic ABS plastics; Maximum ambient temperature: 45 °C; Reduced dimensions and easy installation; Telescopic tube suitable for all wall thicknesses; Flexible external grille for indoor or outdoor mounting; G3 class filter; Flow rectifier for increased performance (only for the 160 mm diameter version); Compliant with regulations. (EU) 1254/2014.

THE PACKAGE INCLUDES:
Satellite ventilation unit with heat recovery and outdoor grille;
ACCESSORIES AND SPARE PARTS:
Satellite ventilation unit with heat recovery and outdoor grille;
Additional ventilation unit;
Outdoor air intake/exhaust terminal;
G3 class filter;

Product code: AP19982
