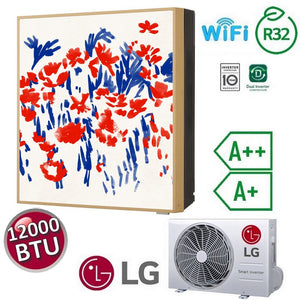

LG Artcool PHOTO WiFi - 12000 BTU

Monosplit air conditioner A++ / A+ / mirror finish

Structure

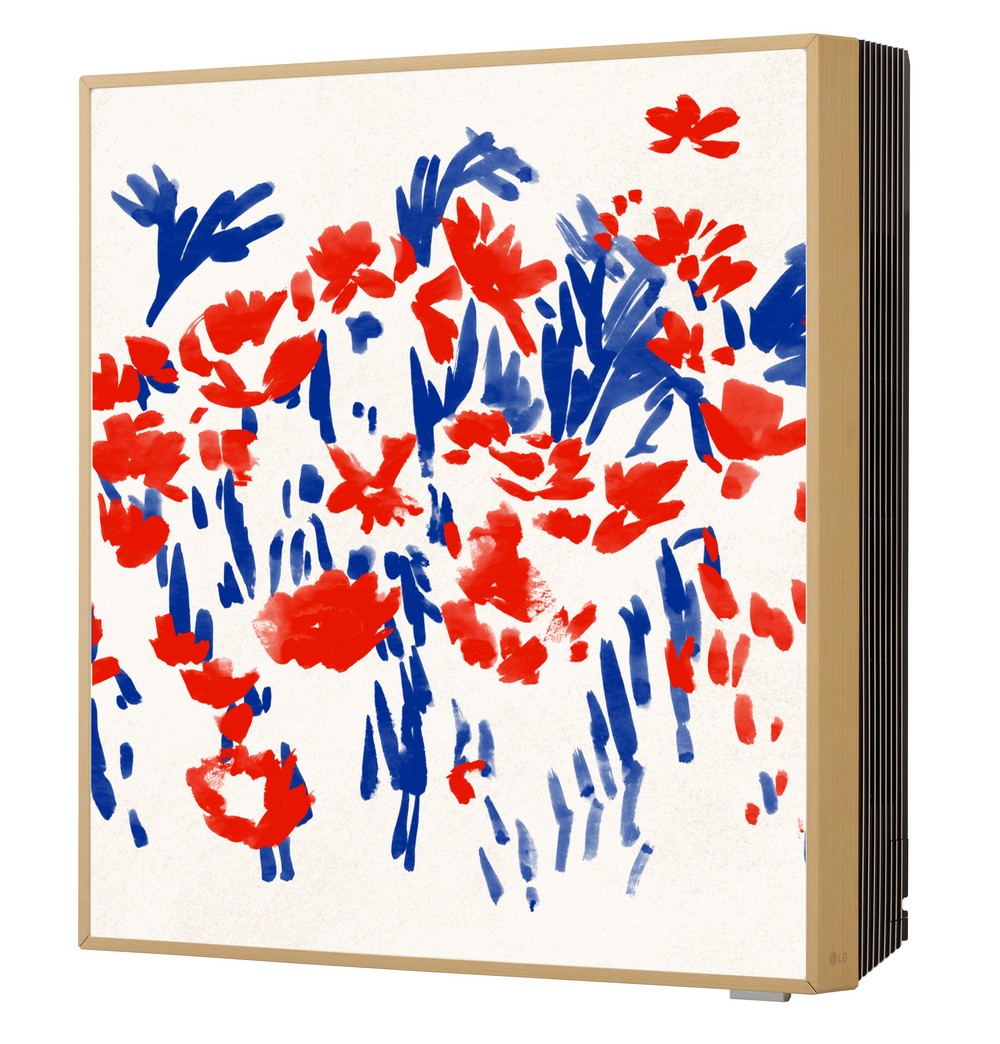

Wall-mounted indoor unit, compatible with LG R32 systems, consisting of an internal galvanized steel chassis and an external anti-shock plastic casing.

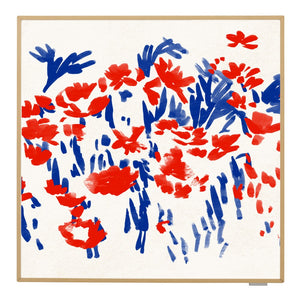

Front panel with customizable frame.
Wood-colored frame with magnetic bottom profile.
Air intake located at the top of the front panel, with three outlets (right, left, bottom).
Multi-channel heat exchanger. Rows of copper tubes with aluminum fins; refrigerant fluid regulation by electronic expansion valve located on the outdoor unit.

Optimal comfort
3D air distribution with indirect air function adjustable by infrared control

Series: Artcool Gallery PHOTO WiFi - with R32 refrigerant gas

• Indoor unit model: A12GA1.NSE

• Outdoor unit model: A12GA1.U18

• Type: heat pump

• Power: 12,000 BTU


Energy efficiency:

• Seasonal efficiency:
  -SEER: 6.80
  -SCOP average climate zone: 4.3

• Energy efficiency class (cooling): A++

• Energy efficiency class (heating): A+

• Seasonal energy consumption kWh/year: cooling 180 - heating 879

Performance:

• Cooling capacity (kW): 3.5 (0.89 / 4.04)

• Heating capacity (kW): 4.0 (0.89 / 4.7)

• Indoor unit sound pressure (sa.-a.-m.-b.) (dB(A)): 42/20

• Max. estimated indoor unit sound pressure (dB(A)): 51/54

• Outdoor unit sound power (a.): 65

• Power consumption in cooling mode (kW): 1020

• Power consumption in heating mode (kW): 1078

Electrical characteristics:

• Power supply (V/Hz/Φ): 230/1/50

Features:

• Refrigerant gas: R32 / 800 g

• Liquid/gas pipe diameter: 6.35 (1/4") / 9.52 (3/8") mm

• Maximum pipe length with additional charge (m) 20

• Maximum height difference (outdoor unit above) m 7

Dimensions and weight:

• Indoor unit H x W x D (mm): 652 x 652 x 158; 20 kg

• Outdoor unit H x W x D (mm): 770 x 545 x 288; 33.4 kg

Product code: A12GA1.NSE+A12GA1.U18
