LG Artcool PHOTO WiFi - 9000 BTU

Monosplit Air Conditioner A++ / A+ / Photo Gallery

Structure
Indoor unit for wall installation, compatible with LG R32 systems, consisting of an internal galvanized steel frame and an external shockproof plastic casing.

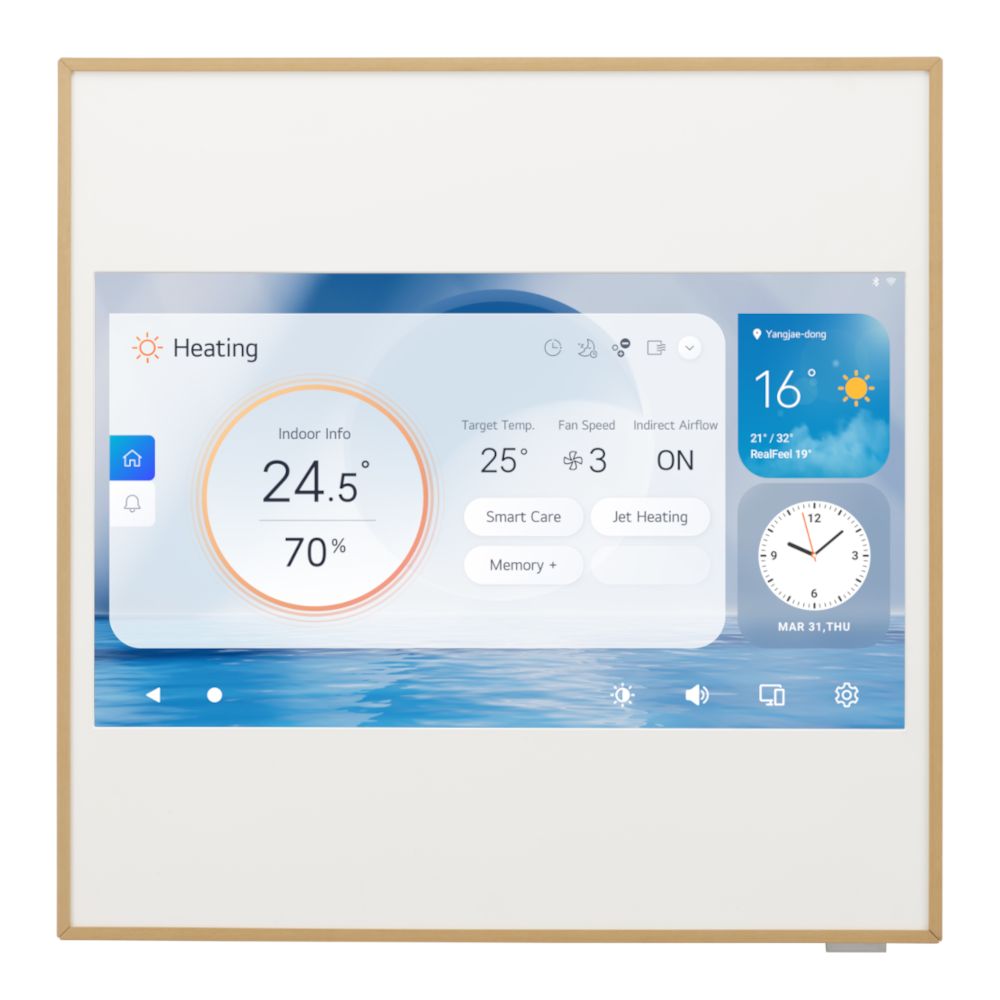

Front panel with customizable frame.
Wood-colored frame with magnetic lower profile.
Air intake located at the top of the front panel, with three outlets (RIGHT, LEFT, BOTTOM).
Multi-row heat exchanger with aluminum-finned copper tubes. Refrigerant fluid regulation by integrated electronic expansion valve. external.

Comfort and Power
3D air distribution with indirect air function adjustable via infrared control

Series: Artcool Gallery PHOTO WiFi - with R32 refrigerant gas

• Indoor Unit Model: A09GA1.NSE

• Outdoor Unit Model: A09GA1.U18

• Type: Heat Pump

• Power: 9,000 BTU


Energy Efficiency:

• Seasonal Efficiency:
  -SEER: 7.3
  -SCOP Average Climate Zone: 4.3

• Energy Efficiency Class (cooling): A++

• Energy Efficiency Class (heating): A+

• Annual Seasonal Energy Consumption kWh/year: cooling 124 - heating 911

Performance:

• Cooling Capacity (kW): 2.6 (0.89 / 3.7)

• Heating Capacity (kW): 3.3 (0.89 / 4.1)

• Sound Pressure Unit Int. (sa.-a.-m.-b.) (dB(A)): 42/20

• Sound Pressure Unit Max. Ext. (dB(A)): 53/51

• Sound Power O.U. (a.): 62

• Absorbed Cooling Power (kW): 0.600

• Absorbed Heating Power (kW): 0.808

Electrical Characteristics:

• Power Supply (V/Hz/Φ): 230/1/50

Features:

• Refrigerant Gas: R32 / 800g.

• Liquid/Gas Pipe Diameter: 6.35 (1/4") / 9.52 (3/8") mm

• Maximum Pipe Length with Surcharge: 20 m

• Maximum Height Difference (outdoor unit above): 7 m

Dimensions and Weight:

• Internal unit H x W x D (mm): 652 x 652 x 158; 20 kg

• External unit H x W x D (mm): 770 x 545 x 288; 33.4 kg

Product code: A09GA1.NSE+A09GA1.U18

As of July 25, 2019, in accordance with Decree 146/2018, companies that sell fluorinated gases and non-hermetically sealed equipment containing them must electronically transmit sales information to the Chamber of Commerce. The decree aims to monitor the sale of these gases to reduce emissions. Presidential Decree 146/2018 requires that, upon sale, the buyer declares whether they are purchasing as a certified installer, distributor/wholesaler, or end-user. For more information and to download the forms to be completed, you can consult the dedicated page on our website by clicking on the following link: https://www.supersamastore.it/acquisto-climatizzatori
