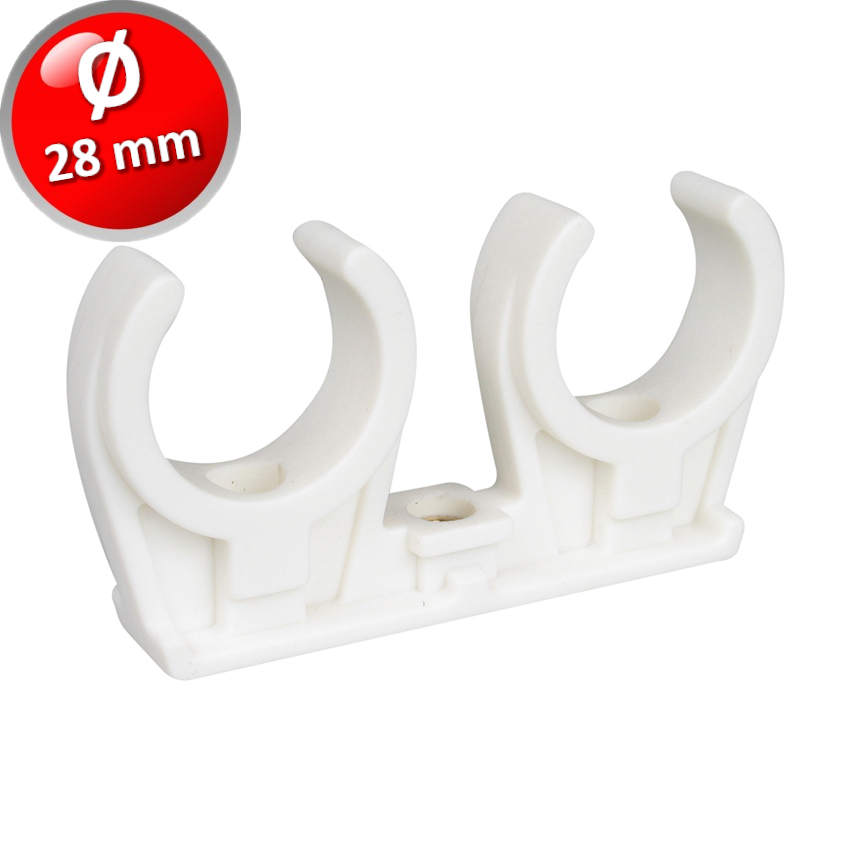

Double-snap plastic clip, 28 mm diameter

For copper and multilayer pipes

Features and Benefits:

• One-piece collar
• M6 threaded brass fitting
• Material: PP (polypropylene), white (RAL 9016 compliant)
• Fire resistance class B2
• Non-corrosive, recyclable, halogen-free, UV and aging resistant
• Temperature resistance from approx. -30 °C to +90 °C (constant operating temperature); temporarily up to +110 °C
  • ✓D (mm): 14-15;
  • ✓D (″): - ;
  • ✓G: M6;
  • ✓B (mm): 89;
  • ✓H (mm): 47;
  • ✓h (mm): 34;
  • ✓b (mm): 14;
  • ✓K (mm): 50;
