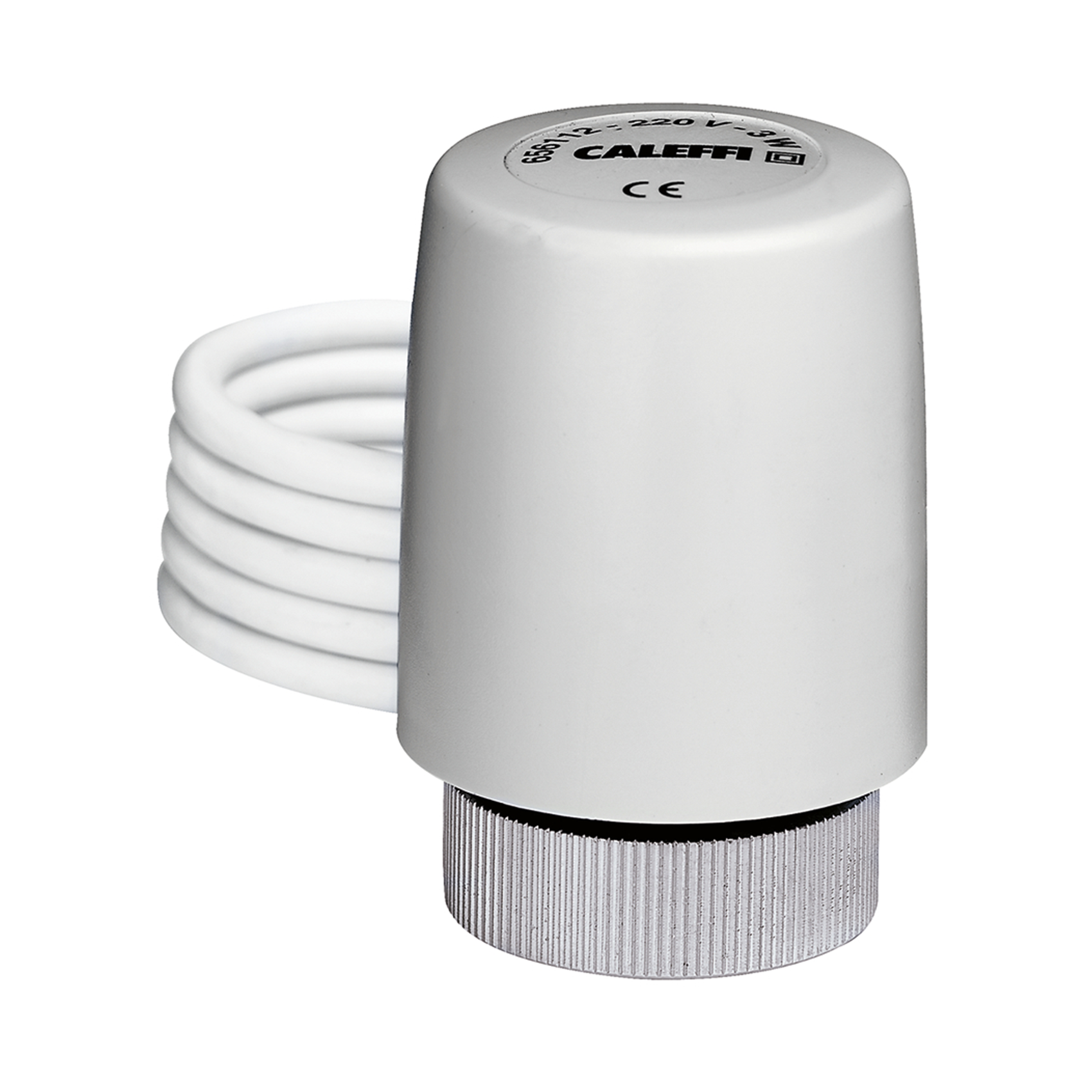

CALEFFI 656112 - Thermoelectric actuator with auxiliary microswitch
Description:
Thermoelectric actuator with auxiliary microswitch.
Normally closed.
For valves series 338, 339, 401, 402, 425, 426, 421, 422, 455, 456, 220, 221, 222, 223, 224, 225, 226, 227, 230, 231, 232, 233, 234, 237, 676, 677, 678 and manifolds series 670, 671, 663, 668.S1, 662, 664, 665.
With auxiliary microswitch.
Technical features:
Operating ambient temperature range: 0–50 °C
Protection class: IP 44 (in vertical position)
Power cable length: 0.8 m
Auxiliary microswitch contact capacity (230 V): 0.8 Inrush current: ≤ 1 A
Product code: 656112
CALEFFI 656112 - Thermoelectric actuator with auxiliary microswitch
Description:
Thermoelectric actuator with auxiliary microswitch.
Normally closed.
For valves series 338, 339, 401, 402, 425, 426, 421, 422, 455, 456, 220, 221, 222, 223, 224, 225, 226, 227, 230, 231, 232, 233, 234, 237, 676, 677, 678 and manifolds series 670, 671, 663, 668.S1, 662, 664, 665.
With auxiliary microswitch.
Technical features:
Operating ambient temperature range: 0–50 °C
Protection class: IP 44 (in vertical position)
Power cable length: 0.8 m
Auxiliary microswitch contact capacity (230 V): 0.8 Inrush current: ≤ 1 A
Product code: 656112
CALEFFI 656112 - Electrothermal actuator with auxiliary microswitch
SKU:656112
- Regular price
- 39,04 €
- Sale price
- 39,04 €
