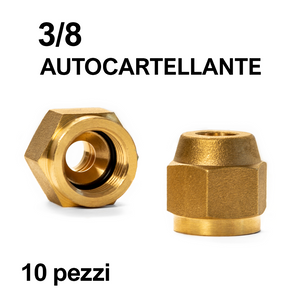

3/8" Auto-Flaring Fitting
10 pieces -Avoid flaring and eliminate the risk of leaks

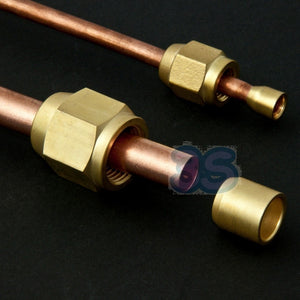

Self-flaring fittings allow the connection of copper and aluminum pipes without flaring. They are compatible with traditional 45° flared fittings and with pipes of any thickness. Tests carried out in accordance with European safety and environmental standard EN 378 demonstrate that they can also be used as a reliable alternative to brazing, for example for interventions in explosive atmospheres.
The metallic seal and service pressure up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems operating with new low environmental impact refrigerants for connecting pipes, valves, tanks and general piping components.
The clamping ring acts as a vise on the external surface of the pipe to withstand pressure and create an effective seal.

Features:

• Fluid temperature: -40 °C to +150 °C
• Maximum working pressure: 140 bar
• Suitable for all refrigerants and oils HFC, HCFC, HC, R744
• Triple metallic seal
• Compatible with traditional 45° flared fittings
• No need to calibrate or bend the tube end, or tighten it with a torque wrench

Approvals:

• CE (PED, RoHS, REACH), EAC
• Performance superior to DIN 8912 and SAE J513 requirements compared to traditional 45° flared fittings
• Patented system

Product Code:11394.10
