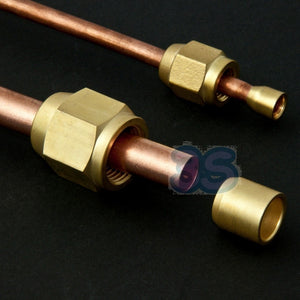

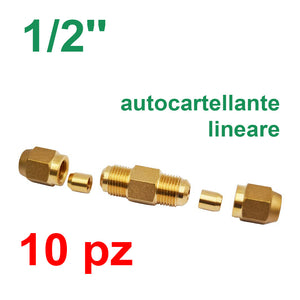

Practical, safe, and innovative straight fitting for connecting both ends of a copper or aluminum pipe without traditional flaring. Each kit includes a fitting and special caps and is universal for 0.80 and 1.00 mm thick pipes. Quick and risk-free connections with a simple turn and a half on the nozzle!

Self-flaring fittings allow connection of copper and aluminum pipes without flaring, are compatible with traditional 45° flared fittings, and work with pipes of any thickness. Tests carried out in accordance with European safety and environmental standard EN 378 demonstrate that they can also be used as a reliable alternative to brazing, for example, for interventions in explosive atmospheres. The metal seal and operating pressure up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems operating with new low environmental impact refrigerants for connecting pipes, valves, tanks, and pipeline components in general. The clamping ring acts as a vice on the external surface of the pipe to resist pressure and create an effective seal. #ff0010;">Features:

• Fluid temperature: -40 °C to +150 °C
• Maximum operating pressure: 140 bar
• Suitable for all refrigerants and HCFC, HFC, HC, and R744 (CO2) oils
• Triple metal seal
• Compatible with traditional 45° flared fittings
• No need to calibrate or flare the pipe end, or tighten with a torque wrench

Approvals:

• CE (PED, RoHS, REACH), EAC
• Performance superior to the requirements of DIN 8912 and SAE J513 standards for traditional 45° flared fittings
• Patented system

Product code: 11383.10
