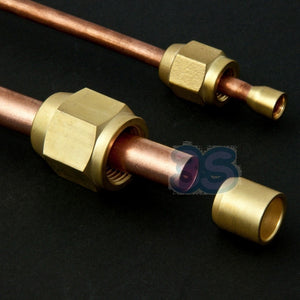

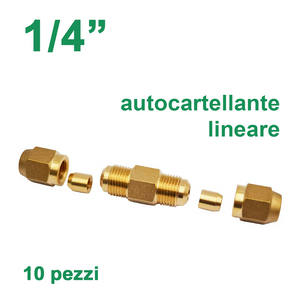

Practical, safe, and innovative straight fitting for connecting the two ends of a copper or aluminum tube without traditional flaring. Each kit includes a fitting and special end caps and is universal for 0.80 and 1.00 mm thick tubes. Quick and risk-free connections with a simple turn and a half on the nozzle!

Self-flaring fittings allow connection of copper and aluminum pipes without flaring, are compatible with traditional 45° flared fittings, and work with pipes of any thickness. Tests carried out in accordance with European safety and environmental standard EN 378 show that they can also be used as a reliable alternative to brazing, for example, for interventions in explosive atmospheres. The metal seal and operating pressure up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems operating with new refrigerants with low environmental impact for connecting pipes, valves, tanks, and pipeline components in general. The clamping ring acts like a vise on the external surface of the pipe to withstand pressure and create an effective seal. #ff0010;">Features:

• Fluid temperature: -40 °C to +150 °C
• Maximum operating pressure: 140 bar
• Suitable for all HCFCs, HFCs, HCs, and R744 (CO2) and oils
• Triple metal seal
• Compatible with traditional 45° flared fittings
• Patented system

Product code: 11381.10
