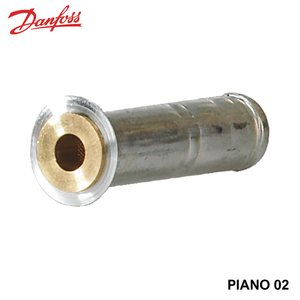

PIANO 02 Nozzle Orifice for Danfoss Valve Type T2 / TE2 – 068-2092

Description:

Replacement calibrated orifice (nozzle) for Danfoss T2 and TE2 series thermostatic expansion valves. An essential component of the refrigeration circuit, it is designed to precisely meter the refrigerant and adapt the valve to the capacity specifications of the refrigeration or air conditioning system.

The orifice is an internal element of the expansion valve that regulates the flow of liquid refrigerant to the evaporator, thereby controlling the superheat level and optimizing the efficiency of the refrigeration cycle.

Features:

• Type: Solder-in orifice (jet/nozzle) for thermostatic valve adapter.
• Compatible Valve Series: T2 and TE2 thermostatic expansion valves.
• Orifice Size: 02 (size by code step).
• Applications: Commercial refrigeration and air conditioning with T2/TE2 valves.
• Compatible Refrigerants: R134a, R22, R404A/R507A, R407C, R448A, R449A, R452A, R454C, R455A, R513A, R1234yf and R744 (CO₂).
• Typical Capacity Performance (N-range):
  • ~3.2 kW with R134a
  • ~6.0 kW with R407C
  • ~4.7 kW with R404A/R507A
  (capacity varies depending on refrigerant type and operating conditions)
• Mounting: Designed to be soldered via an adapter onto a thermostatic valve.
• Weight: Approx. 0.009–0.013 kg.
• Regulations/Approvals: RoHS compliant and suitable for systems according to Danfoss specifications and refrigeration regulations.
